Stamped Components

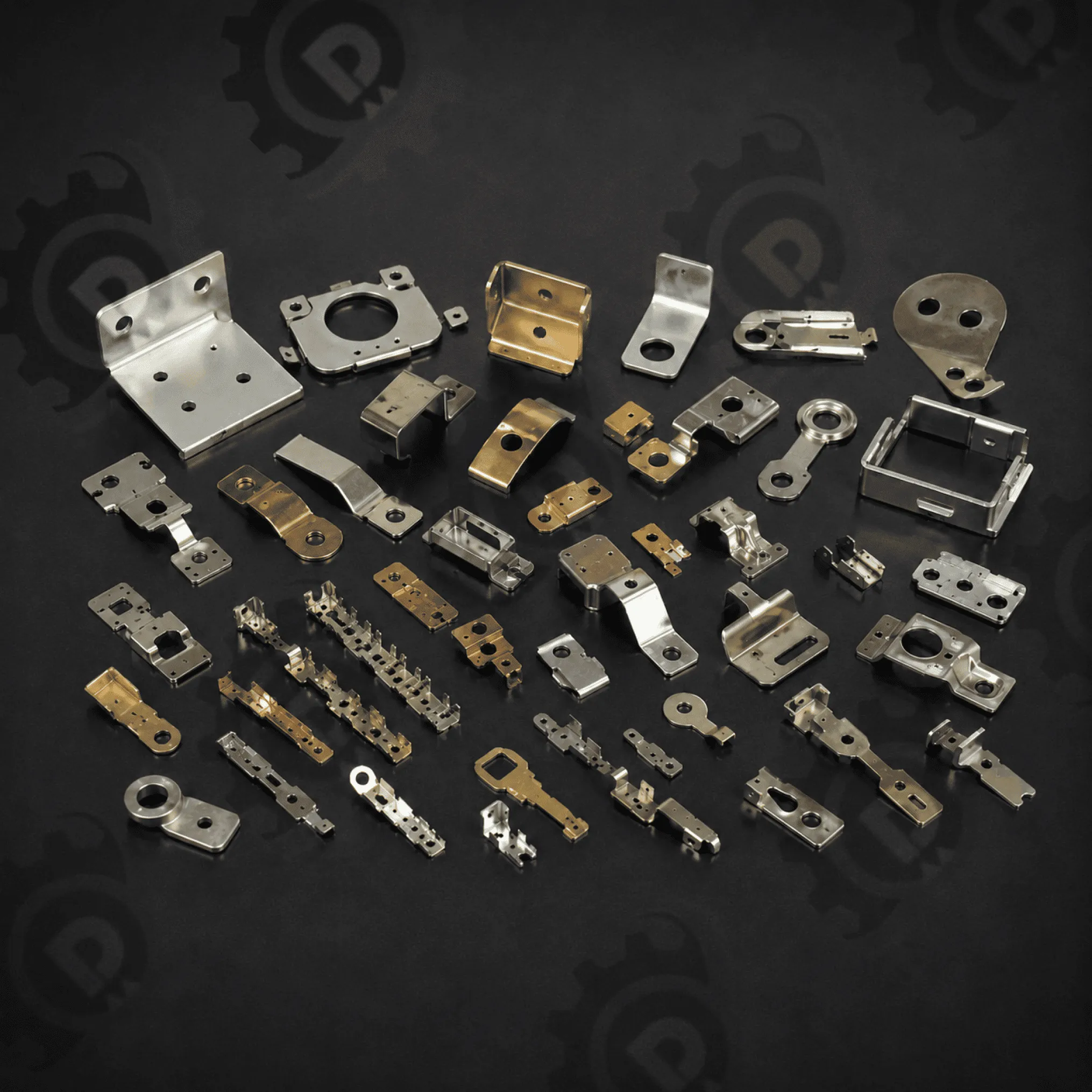

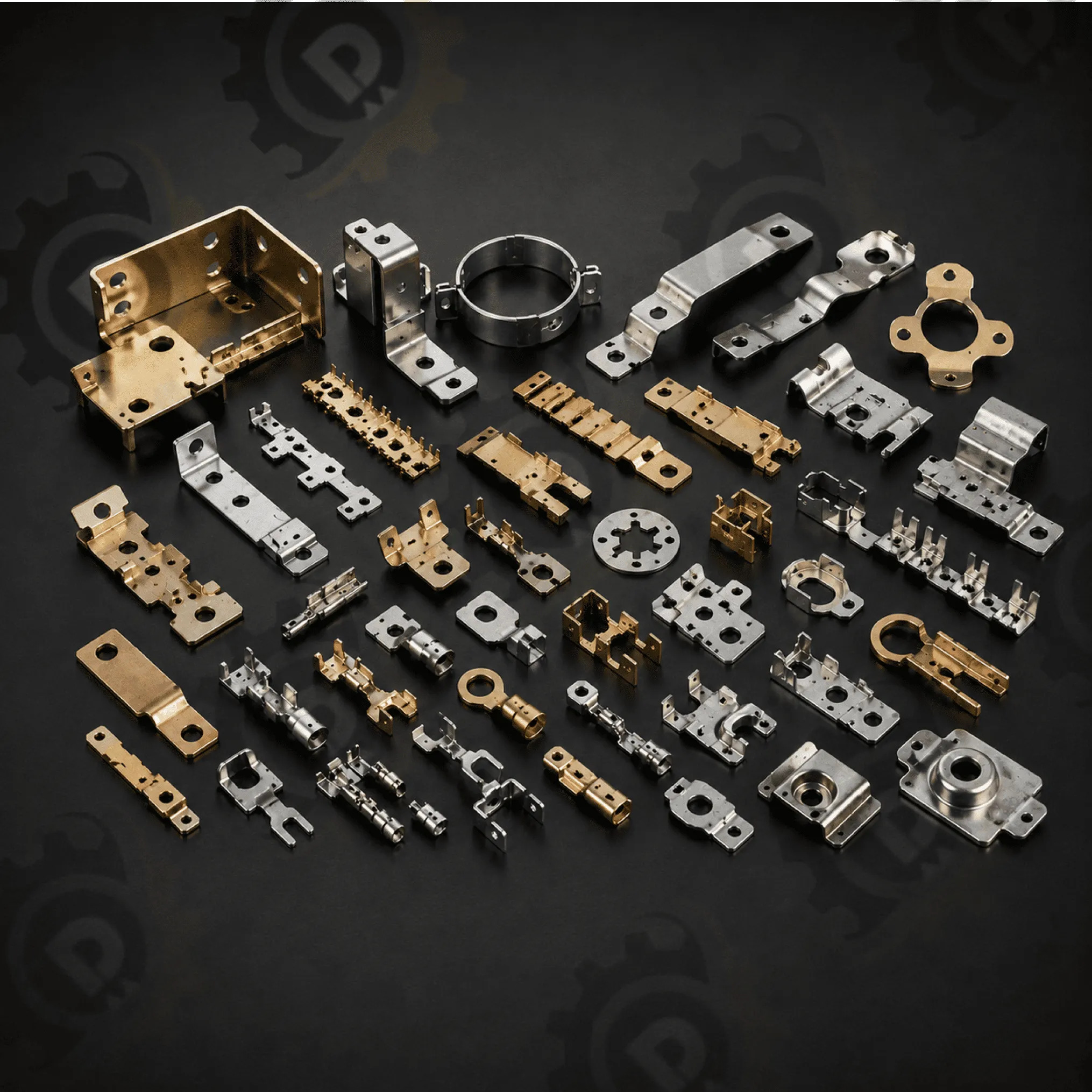

Stamped components.

Complex forms. Tight edges from strip.

Multi-stage stampings, contact tabs, terminal forms, compound-bend connectors, and fine-blanked parts in brass, copper, stainless steel, aluminium, and mild steel — on progressive dies.

MaterialsBrass · Copper · Stainless Steel · Aluminium · Mild steel · Any other metal as per your requirements

Strip thickness0.3mm to 3mm

Blanked edge tolerance±0.05mm fine blanked

Lead time6–8 weeks including tooling and first article (Depends on the article)

Request a quote Send a drawing

Stamping handles geometry that a simple press cannot. Send a drawing to review stage sequence and feasibility.

Materials & finishes

Strip alloy selected for spring, conductivity, or corrosion — not for looks alone.

Tin or nickel on brass and copper contacts. Passivation on stainless. Silver plate on request for signal contacts.

BrassC26000 cartridge brass 70/30 · C26800

CopperC11000 ETP strip

Stainless steelStainless Steel strip

Aluminium5052-H32 strip

Mild steelDC01 / SPCC strip

NaturalAs-stamped

Nickel platedEN ISO 4527

Tin platedOn copper and brass — oxidation control, solderability

Silver platedOn request for signal contacts

Passivated (SS)After forming

CustomMatch a reference sample

Specifications

What a buyer typically specifies.

ProcessesProgressive die stamping · Fine blanking · Multi-stage forming · Coining

MaterialsBrass · Copper · Stainless Steel · Aluminium · Mild steel · Any other metal as per your requirements

Strip thickness0.3mm to 3mm

Max strip width150mm

Blanked edge tolerance±0.05mm fine blanked / ±0.1mm standard blanked

Hole position tolerance±0.05mm

Bend angle tolerance±0.5° with springback compensation

Form height tolerance±0.1mm

ToolingProgressive die, designed to the stage sequence

Tooling ownershipCustomer retains after payment

MOQDepends on the article

Lead time6–8 weeks new tooling / 4–6 weeks repeat (Depends on the article)

Files acceptedDXF · PDF 2D drawing · STP file

Who buys this range

For OEMs where contact geometry and form accuracy are the spec.

Connector & terminal manufacturers

Spring contacts, tab terminals, and crimp forms.

Electrical & electronics OEMs

Contact tabs, bus-bar links, and blanked plates.

Automotive suppliers

Stamped brackets, retaining clips, and structural forms to drawing.

Precision instrument makers

Fine-blanked and close-tolerance stamped parts.
