Precision ComponentsPrecision Components · Milling Components
Milling Components
Milling components.
Flat faces, pockets, and prismatic forms.

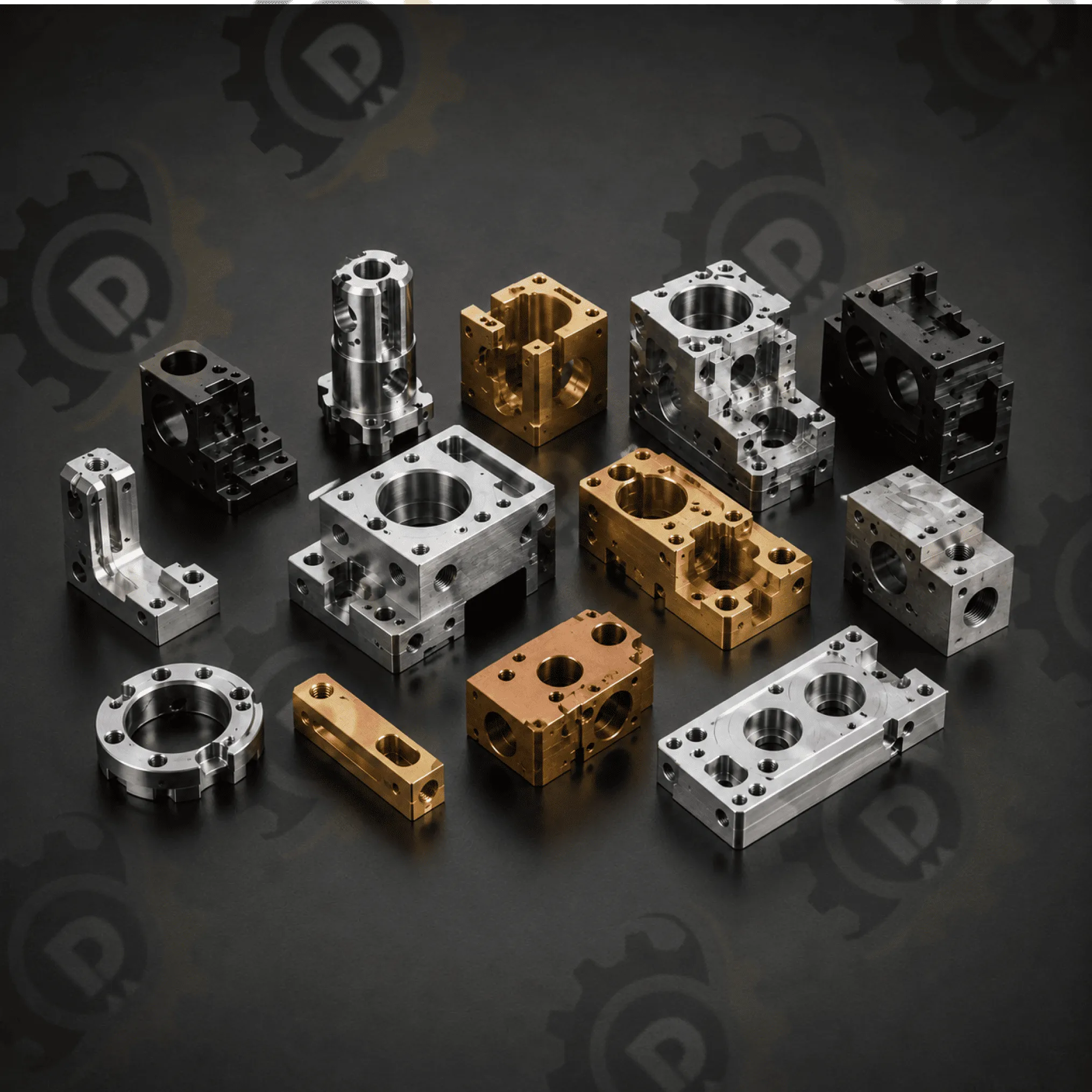

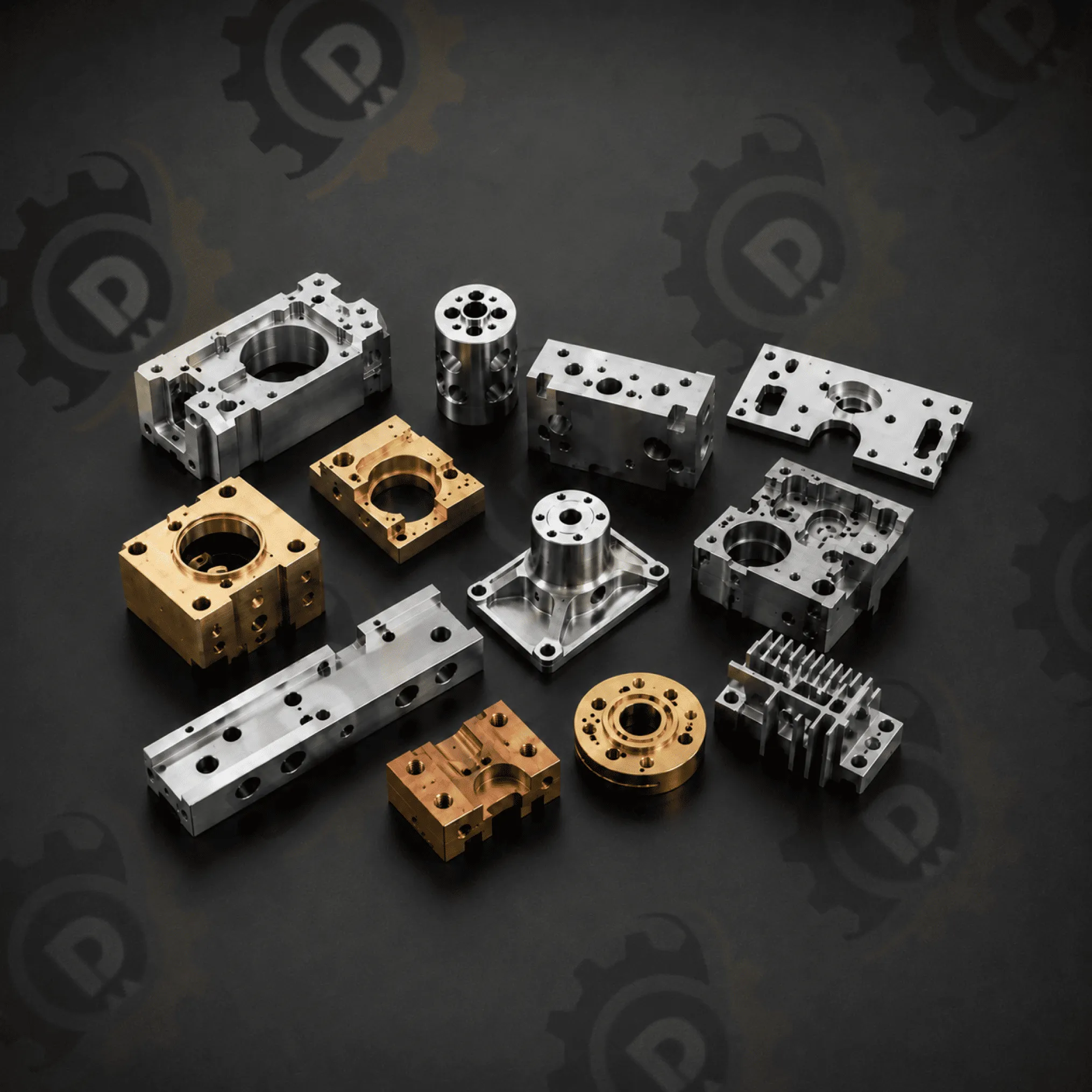

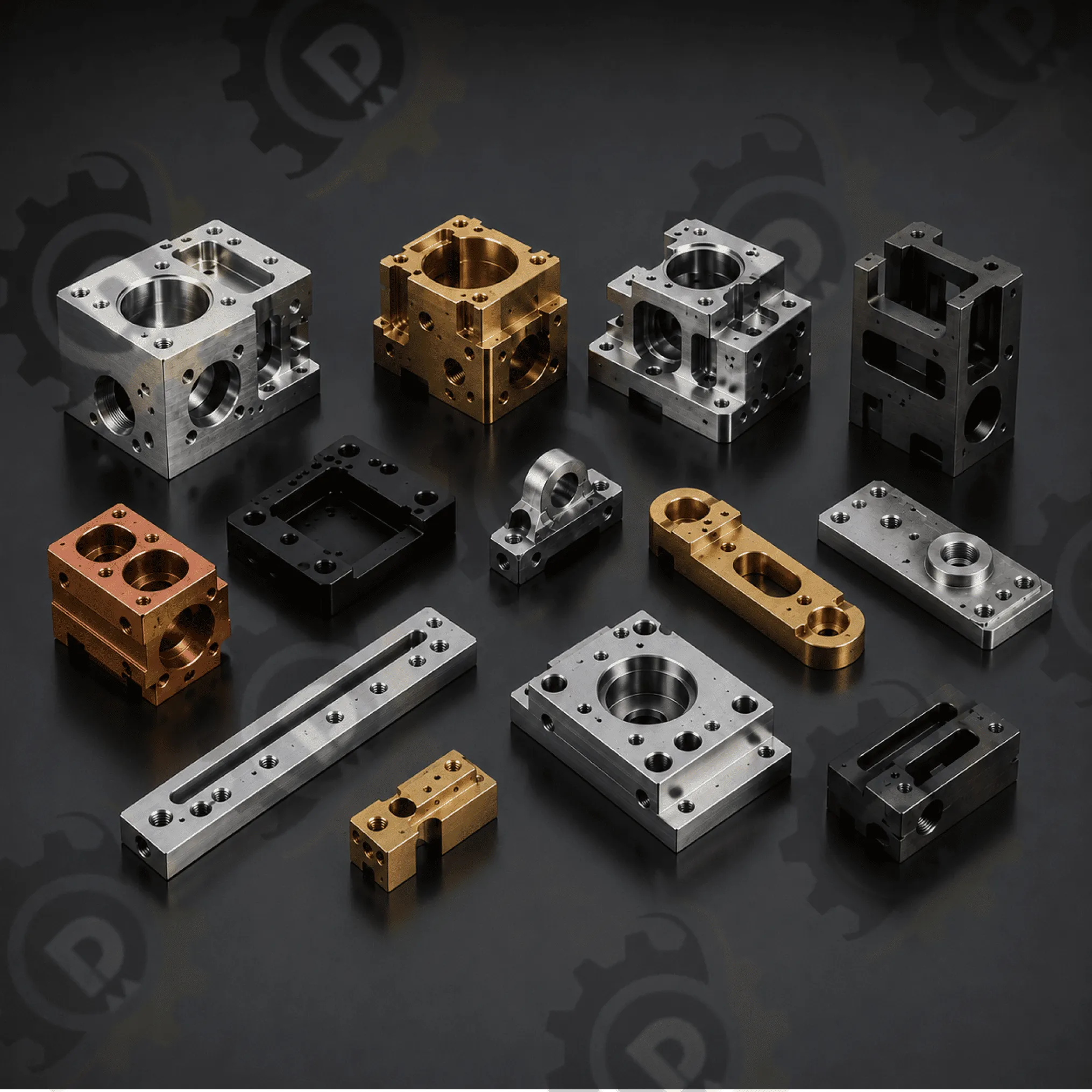

CNC VMC milled parts in brass, stainless steel, aluminium, mild steel, and copper — blocks, plates, brackets, housings, and multi-feature components to your drawing.
MaterialsBrass · Stainless Steel · Aluminium · Mild steel · Copper · Any other metal as per your requirements
MachineCNC VMC
Working envelope500 × 400 × 400mm
Face tolerance±0.02mm standard
If the part has flat faces, pockets, or non-rotational geometry, it is a milling job. Send the STEP or 2D drawing.
Materials & finishes
The alloy follows the environment. The faces follow the print.
Anodising is available on aluminium. Plating is available on brass, steel, copper, and stainless as specified.
Specifications
What a buyer typically specifies.
ProcessCNC/VMC milling
MaterialsBrass · Stainless Steel · Aluminium · Mild steel · Copper · Any other metal as per your requirements
Working envelope500 × 400 × 400mm
Face flatnessWithin 0.02mm per 100mm
Hole position tolerance±0.02mm
ParallelismWithin 0.03mm
Surface finishRa 1.6µm standard / Ra 0.8µm on request
MOQDepends on the article
Lead time4–6 weeks (Depends on the article)
PackingStandard packing + export carton + crate for heavy parts (Custom packing on request)
CertificationsISO 9001:2015 · RoHS · Material certificates on request
Files acceptedDXF · DWG · STEP · PDF
Who buys this range
For assemblies that need a machined face, not only a turned form.
A
Mechanical & machine builders
Milled blocks, plates, and housings for machinery sub-assemblies.
B
Electronics & panel manufacturers
Aluminium and brass enclosure parts and mounting plates.
C
Automotive Tier 2 suppliers
Precision milled brackets and structural parts to drawing.
D
Custom OEM fabricators
Small-batch milled parts where standard stock will not do.
Other ranges from the same plant.
Have a milling drawing?
Share the STEP or 2D print. We confirm achievable tolerances and quote it.
