Precision ComponentsPrecision Components · Casting Components
Casting Components

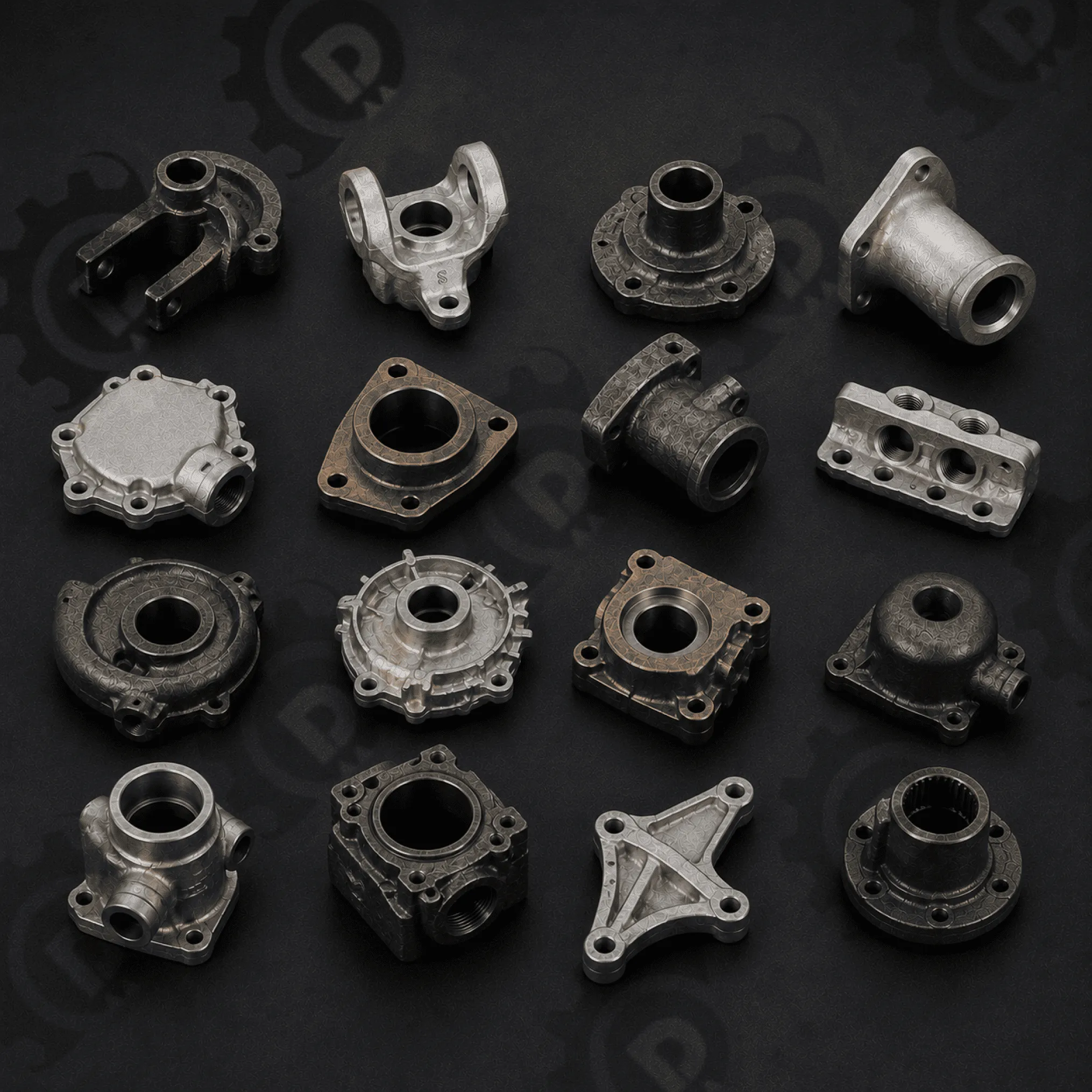

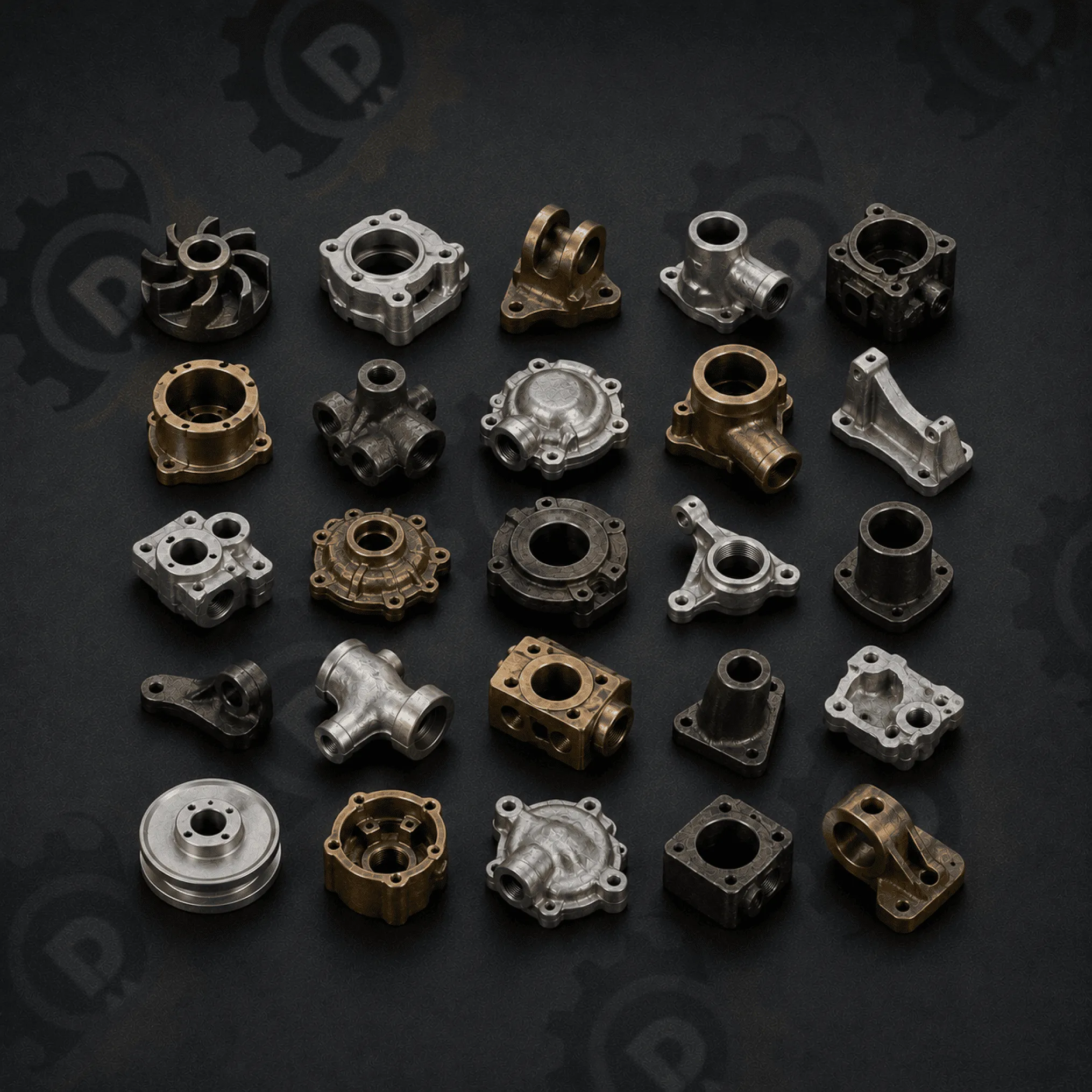

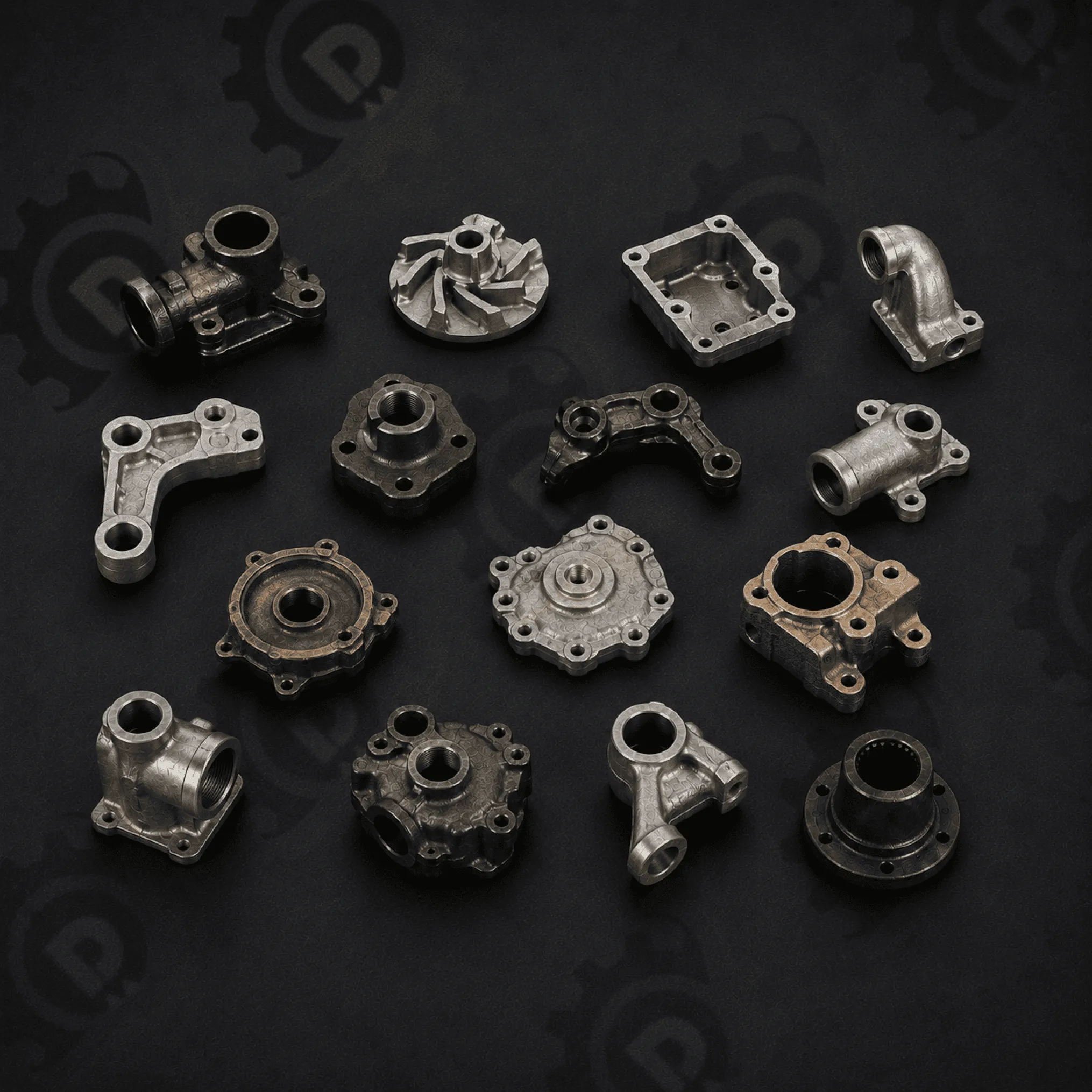

Cast components.
Complex geometry. Near-net shape.
Die-cast and investment-cast parts in brass and aluminium — three-dimensional forms that are uneconomical, or impossible, to machine from solid.
MaterialsBrass casting alloy · Aluminium casting alloy · SS casting alloy · Any other metal as per your requirements
ProcessesDie casting or Investment casting
Post-castingCNC/VMC machining based on the article
Lead time6–8 weeks new article / 4–6 weeks repeat
Casting is for internal passages, undercuts, and 3D forms. Share the 3D model — we recommend die cast or investment cast.
Materials & finishes
Cast in the right alloy. Machine the faces that seal, thread, or locate.
All castings receive CNC on thread bores, sealing faces, and mating surfaces before plating or powder coat.
Specifications
What a buyer typically specifies.
ProcessesDie casting or Investment casting · CNC/VMC machining
MaterialsBrass casting alloy · Aluminium casting alloy · SS casting alloy · Any other metal as per your requirements
Part weight range20g to 2kg
Minimum wall thicknessDepends on the article (Typically 1.5mm for die cast and 1.0mm for investment cast)
As-cast surface finishShot blasted standard (Depends on the article)
Machined tolerance±0.02mm on CNC/VMC faces (Depends on the article)
MOQDepends on the article
Lead time6–8 weeks new article / 4–6 weeks repeat (Depends on the article)
Tooling ownershipCustomer retains after payment
PackingStandard packing + export carton + crate for heavy parts (Custom packing on request)
CertificationsISO 9001:2015 · RoHS · Material certificates on request · Pressure test available on request
Files acceptedSTEP · IGES · DWG · PDF
Who buys this range
For parts whose shape makes bar machining the expensive option.
A
Valve & sanitary OEMs
Cast bodies with machined sealing faces and threads.
B
Hardware & architectural brands
Decorative and structural cast forms, plated or powder coated.
C
Pump & fluid-handling manufacturers
Near-net housings with CNC on bores and ports.
D
Export OEM buyers
Brass and aluminium castings, machined and packed for assembly.
Other ranges from the same plant.
Have a part too complex to machine from solid?
Share the 3D drawing. We recommend die casting or investment casting — and quote both if it is close.
