Pressed components.

Sheet metal, formed at volume.

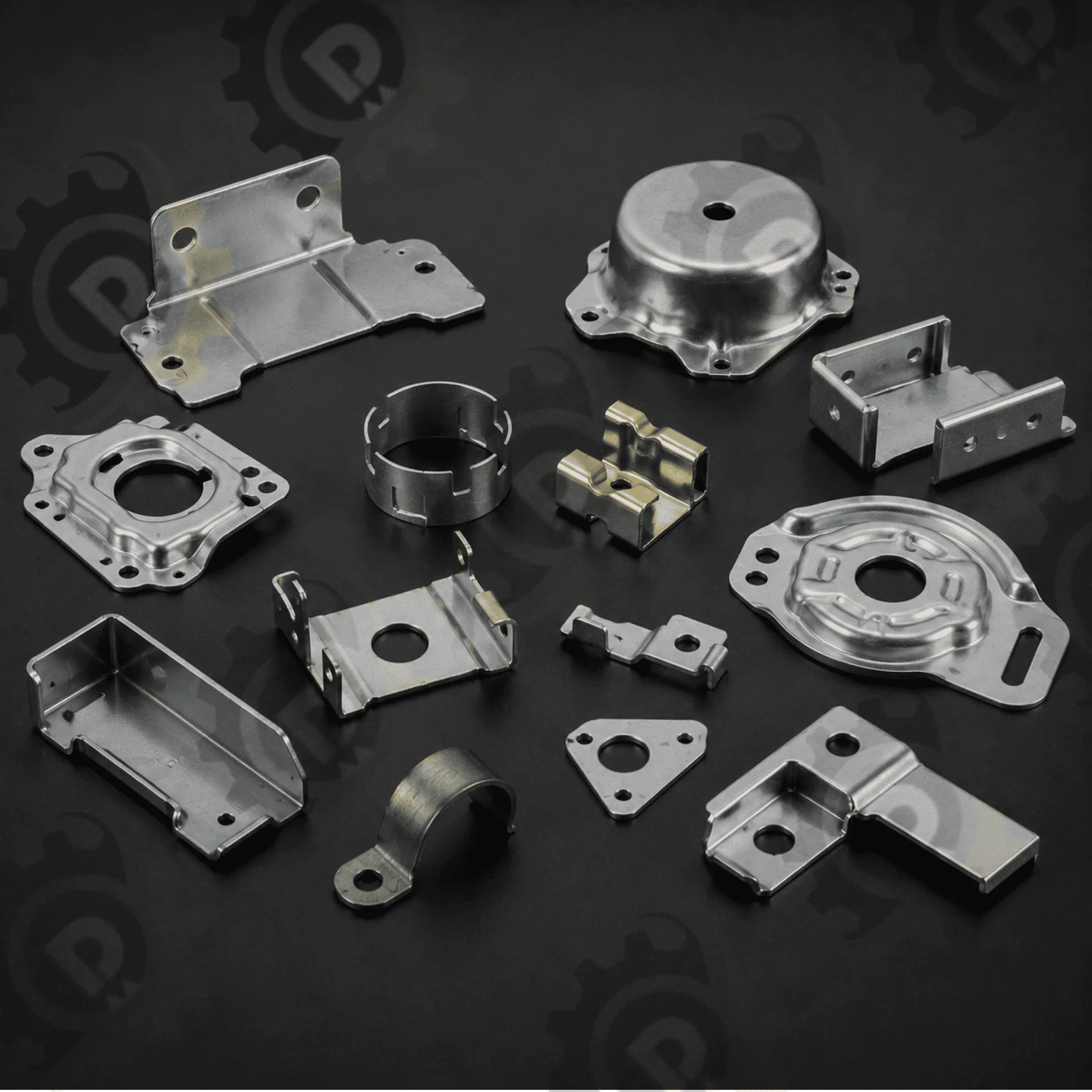

Press-formed parts in brass, stainless steel, aluminium, mild steel, and copper — brackets, clips, covers, terminal lugs, and structural forms on single-stage and progressive dies.

MaterialsBrass · Stainless Steel · Aluminium · Mild steel · Copper · Any other metal as per your requirements

Sheet thickness0.5mm to 4mm

Press capacityUp to 100T

Lead time6–8 weeks including tooling and first article (Depends on the article)

Request a quote Send a drawing

New pressed parts need tooling. Send the DXF — we quote the tool and the piece price together.

Materials & finishes

Sheet alloy selected for load, conductivity, and environment.

Zinc plate on mild steel. Passivation on stainless. Nickel or tin on brass and copper. Powder coat where the assembly needs colour.

BrassC26000 cartridge brass 70/30 · IS 319 strip

CopperC11000 ETP strip (99.9% Cu min.)

Aluminium5052-H32 / 6061-T6 sheet

Mild steelDC01 / SPCC sheet

Stainless steelSS 304 / SS 316 sheet

NaturalAs-pressed

Nickel platedEN ISO 4527

Tin platedConductivity and solderability

Zinc plated (MS)EN ISO 4042

Passivated (SS)After forming

Powder coatedRAL to specification

CustomMatch a reference sample

Specifications

What a buyer typically specifies.

ProcessesBlanking · Piercing · Bending · Deep drawing · Progressive die

MaterialsBrass · Copper · Aluminium · Mild steel · Stainless Steel · Any other metal as per your requirements

Sheet thickness0.5mm to 4mm

Max blank size300 × 300mm

Blank dimension tolerance±0.1mm

Hole position tolerance±0.1mm

Bend angle tolerance±1°

FlatnessWithin 0.2mm over 200mm

ToolingDesigned in-house; manufactured to the job

Tooling ownershipCustomer retains after payment

Tooling lead time12–15 working days

MOQDepends on the article

Lead time6–8 weeks new article / 4–6 weeks repeat (Depends on the article)

Files acceptedDXF · PDF 2D drawing · STP file

Who buys this range

For manufacturers who need formed sheet parts at volume.

Electrical panel & switchgear builders

Pressed copper lugs, earthing plates, and bus-bar blanks.

Cable-management manufacturers

Brackets, saddle clamps, and cable clips in volume.

Automotive Tier 2 suppliers

Pressed brackets and structural formed parts to drawing.

Consumer electronics OEMs

Covers, clips, and housing parts in brass and aluminium.
